In today's world, battery-powered devices and systems are becoming increasingly prevalent, ranging from electric vehicles (EVs) to renewable energy storage to consumer electronics. As these devices grow in size, capacity, and power demands, managing battery temperature has become a critical factor in maintaining performance, lifespan, and safety. Overheating is one of the leading causes of battery failure, leading to reduced efficiency and potentially hazardous conditions. This is where liquid cooling plates come into play, offering an effective solution to optimize battery performance by maintaining an ideal operating temperature.

This article explores how liquid cooling plates, specifically designed for battery cooling applications, can maximize battery efficiency, enhance safety, and prolong service life. We will also delve into various types of cooling plates, such as custom liquid cooling plates, aluminum cooling plates, integrated water cooling plates, and laser-welded cooling plates, all of which play a significant role in precision cooling solutions for modern battery technology.

The Importance of Battery Temperature Management

To understand the need for liquid cooling plates in battery systems, it’s essential to grasp why temperature management is crucial in the first place. Batteries, especially lithium-ion batteries, are sensitive to temperature fluctuations. When a battery operates outside its optimal temperature range, it can lead to several problems, including:

Decreased Efficiency: High temperatures increase internal resistance, leading to energy losses in the form of heat, reducing the battery’s overall efficiency.

Shortened Lifespan: Consistently high temperatures accelerate chemical reactions inside the battery, which can cause the electrodes to degrade faster, significantly shortening the battery's lifespan.

Safety Hazards: Overheating can lead to thermal runaway, a dangerous condition where the battery becomes unstable and potentially bursts into flames or even explodes.

For these reasons, controlling battery temperature is not just about enhancing performance—it’s a matter of safety and longevity. Liquid cooling plates provide a highly effective method of maintaining a stable, optimal temperature for batteries during operation.

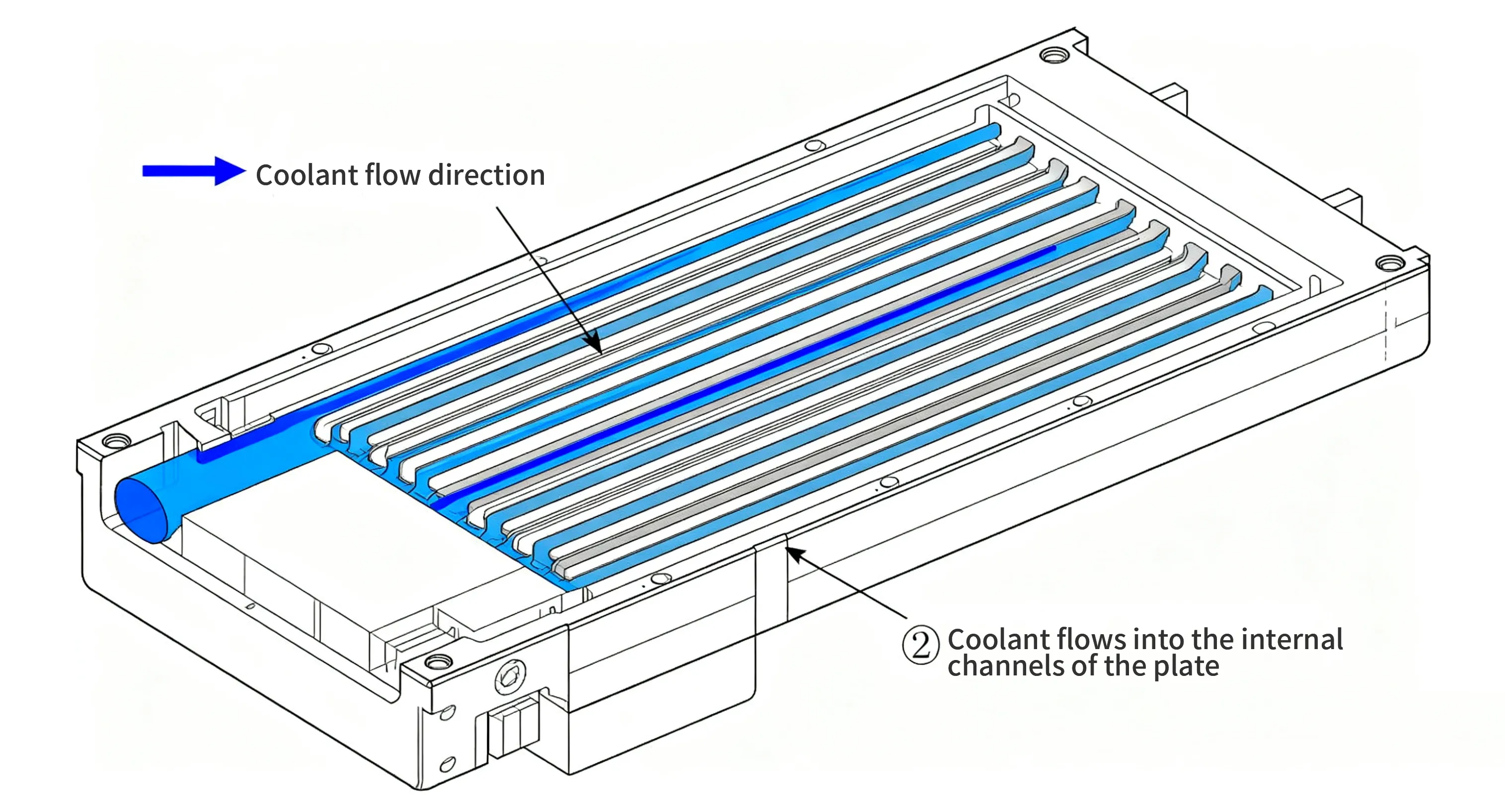

How Liquid Cooling Plates Work

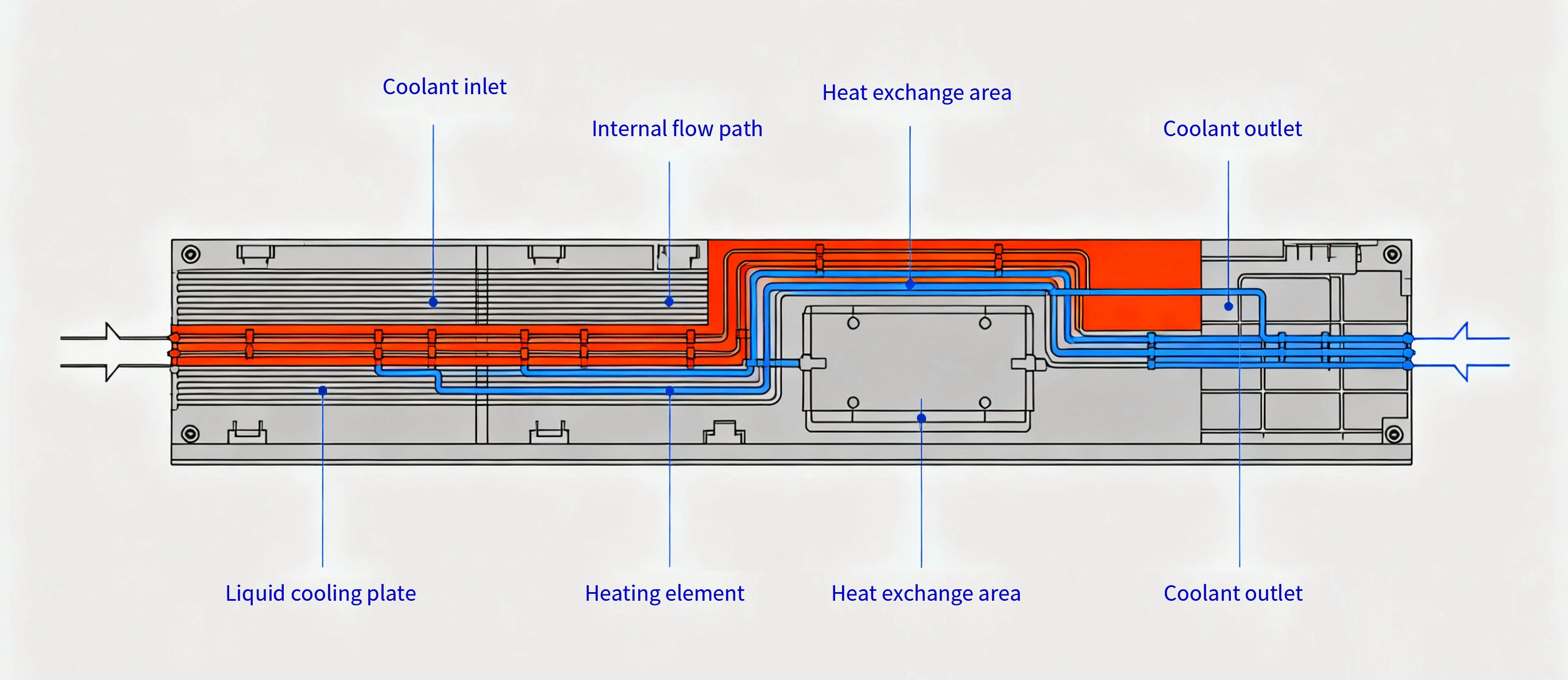

Liquid cooling plates function by transferring heat away from the battery and dissipating it efficiently. They are typically composed of highly conductive materials, such as aluminum, and are integrated into a closed-loop cooling system that uses a coolant—usually water or a specially designed cooling fluid—to carry away excess heat.

These plates are designed to be in direct contact with the surface of the battery or battery pack, allowing them to absorb heat generated during charge and discharge cycles. Once the heat is absorbed, the coolant within the liquid cooling plates flows to a heat exchanger or radiator, where the heat is dissipated into the surrounding air.

The advantages of liquid cooling plates include:

Higher Cooling Efficiency: Liquid cooling is more effective than air cooling because liquids have a higher heat capacity and can carry heat away more efficiently.

Uniform Temperature Distribution: Liquid cooling plates ensure more even cooling across the battery surface, reducing the risk of hotspots.

Compact Design: Liquid cooling plates can be designed to fit into tight spaces, making them ideal for applications where space is at a premium.​​​​​​​

Types of Liquid Cooling Plates for Battery Systems

Several types of liquid cooling plates are available, each offering distinct advantages depending on the specific requirements of the battery system. Some of the most commonly used types include custom liquid cooling plates, aluminum cooling plates, integrated water cooling plates, and laser-welded cooling plates.



1. Custom Liquid Cooling Plates

For applications with specific design constraints or complex geometries, custom liquid cooling plates are a valuable solution. These cooling plates are tailored to fit the precise dimensions and cooling requirements of the battery system. Customization can include factors such as:

Shape and Size: Cooling plates can be designed to fit irregularly shaped battery packs or cells, ensuring maximum contact area and optimal heat transfer.​​​​​​​

Flow Paths: Custom cooling plates can be engineered with optimized flow channels that enhance the efficiency of the coolant flow, ensuring uniform cooling.​​​​​​​

Material Selection: Depending on the cooling requirements, manufacturers can select materials with the best thermal conductivity, durability, and weight characteristics.

Custom liquid cooling plates are commonly used in high-performance applications such as electric vehicles (EVs) or energy storage systems, where precise temperature management is essential for performance and safety.



2. Aluminum Cooling Plates

Aluminum cooling plates are a popular choice due to the material's excellent thermal conductivity, lightweight properties, and cost-effectiveness. Aluminum’s high thermal conductivity allows it to efficiently transfer heat away from the battery, ensuring that the cells maintain a consistent temperature.

In battery cooling systems, aluminum cooling plates are typically used in designs where weight is a concern, such as in electric vehicles. Their relatively low cost also makes them an attractive option for commercial applications, including battery packs for energy storage systems and power grids.

Additionally, aluminum is resistant to corrosion and has good mechanical properties, making it ideal for long-term reliability in various environments.



3. Integrated Water Cooling Plates

Integrated water cooling plates combine the cooling plate and the water flow system into a single, compact unit. This type of cooling solution is highly efficient for battery systems that generate substantial amounts of heat during operation.

The integrated design simplifies the system by reducing the number of components needed for cooling, resulting in lower maintenance and fewer potential points of failure. These cooling plates often feature internal channels where water circulates, transferring heat away from the battery and towards an external heat exchanger or cooling system.

These solutions are commonly used in high-performance applications such as high-power battery systems for EVs or grid energy storage.



4. Laser-Welded Cooling Plates

For applications requiring high structural integrity and performance, laser-welded cooling plates are an ideal solution. These cooling plates are constructed by welding thin metal layers together using high-precision lasers, creating robust, leak-proof joints that improve the overall durability of the cooling system.

Laser-welding technology is often used to fabricate aluminum cooling plates or other metal-based cooling plates. The result is a highly reliable, leak-resistant cooling system that can operate efficiently in demanding conditions, such as high-temperature environments or high-pressure systems like those found in industrial battery storage applications.

​​​​​​​

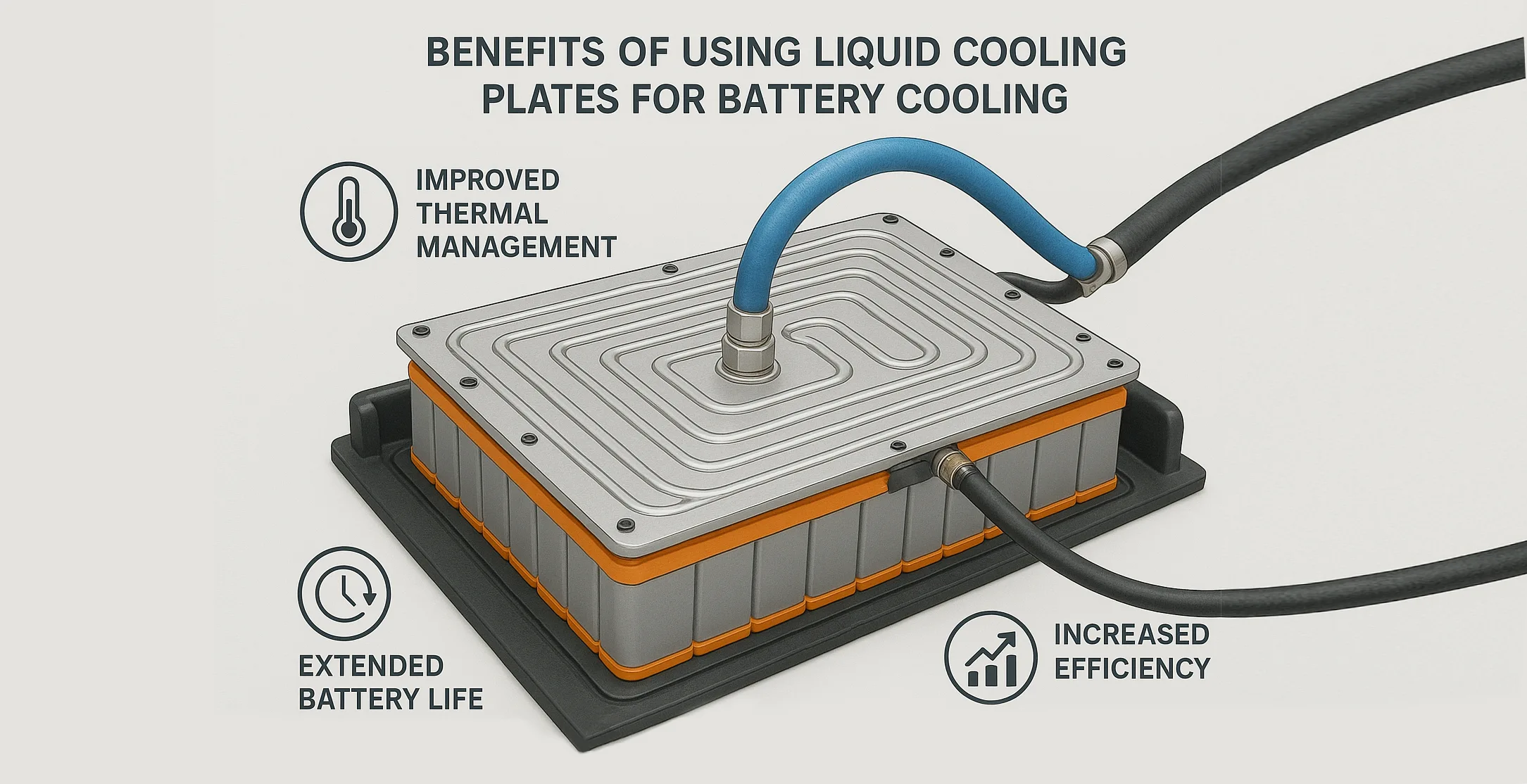

Benefits of Using Liquid Cooling Plates for Battery Cooling

By using liquid cooling plates, battery systems can experience numerous benefits that improve overall efficiency, longevity, and safety:

Enhanced Battery Life: By maintaining an optimal temperature, liquid cooling plates prevent excessive wear and tear on battery cells, leading to a longer lifespan and reduced frequency of replacements.​​​​​​​

Improved Performance: When a battery operates within its ideal temperature range, it can deliver peak performance without the risk of overheating. Liquid cooling plates help ensure that the battery is able to perform at its best throughout its charge and discharge cycles.​​​​​​​

Energy Efficiency: By optimizing the cooling process, liquid cooling plates help reduce energy waste. This is particularly important for large-scale battery storage systems where efficiency is paramount.​​​​​​​

Safety: Maintaining a consistent temperature prevents thermal runaway, a phenomenon where excessive heat causes chemical reactions that lead to catastrophic battery failures. Liquid cooling systems help mitigate these risks by ensuring temperature stability.

Conclusion

Liquid cooling plates are indispensable in today’s high-performance battery systems, especially in applications such as electric vehicles, grid energy storage, and other large-scale battery systems. By employing advanced cooling solutions such as custom liquid cooling plates, aluminum cooling plates, integrated water cooling plates, and laser-welded cooling plates, manufacturers can achieve optimal temperature control, maximize battery efficiency, and enhance safety and longevity.

As the demand for more efficient and reliable battery systems grows, liquid cooling plates will continue to be a vital technology in keeping battery temperatures within safe operating limits. Whether used in automotive, industrial, or consumer electronics applications, liquid cooling plates provide a cost-effective and efficient solution to one of the most pressing challenges in modern energy storage.
